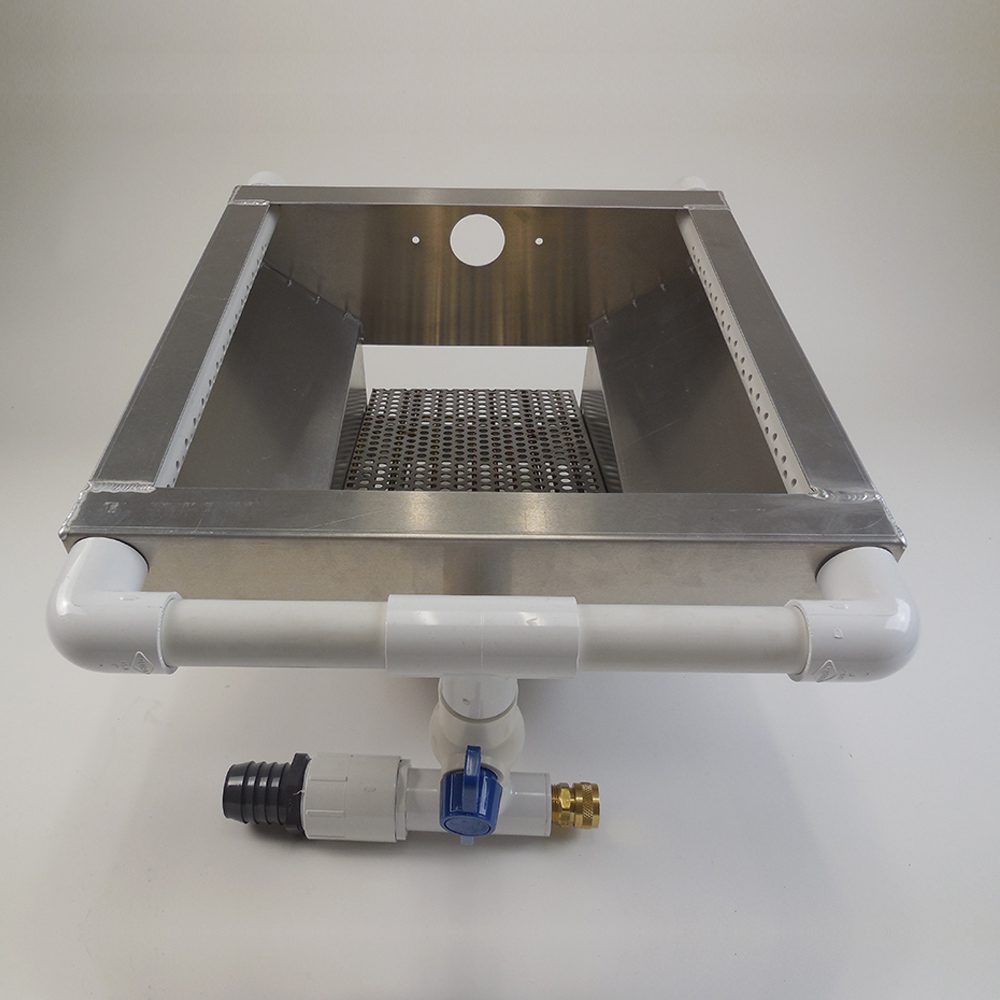

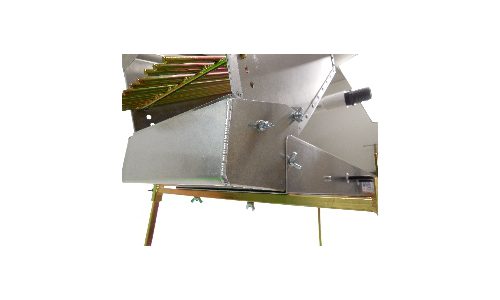

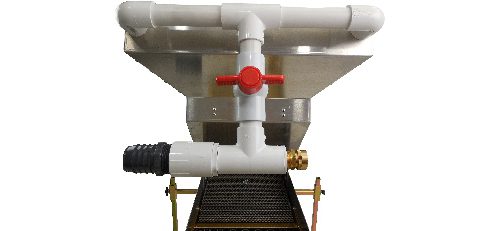

Highbanker/Dredge Ready Hopper
SKU: 00157
Convert your 10″ Wide Sluice Box to either a Highbanker, Dredge or both with this unit. Comes ready to receive a 2″ dredge adapter (sold seperately). The water inlet is equipped with a 1 1/2″ barbed fitting that is removable. Use the ball valve to adjust the water supply. The Grizzly is removable and also adjusts to 3 different angles, from clay to gravels. A 10″ wide X 10 3/4″ Stainless Steel Perforated Plate is inluded, this will protect the deep ribbed matting also included, both removable. Includes: Hopper, Top measures 17 1/2″ X 17 1/2″ Dual adjustable and removable spray bars Zinc Platted Steel adjustable and removabl Grizzly Ball Valve to adjust water supply Adapter to attach Hopper to Sluice 10″ X 10 3/4″ Stailnless Steel Perforated Plate 10″ X 10 3/4″ Deep Ribbed Rubber Matting
- Key Features
- Reviews (0)
Convert your 10” wide Sluice Box to both a Highbanker / Dredge. The top of Hopper is 17-1/2” x 17-1/2” with dual adjustable and removable spray bars. Comes ready to receive a 2” Dredge Adapter (sold separately, see below). Includes adapter to attach Hopper to your 10” wide Sluice Box. The water inlet is equipped with a 1-1/2” barbed fitting that is removable. Use the ball valve to adjust water supply, Zinc plated Steel Grizzly is removable and also adjusts to 3 dif-ferent angles, from clay to gravels.
Included is a 10” x 10-3/4” Stainless Steel perforated plate that protects the 10” x 10-3/4 deep ribbed matting both removable. Total weight is 14 pounds.
